Freeing the camera from the ground gives cinematography an entirely new dimension of creativity.
Our experience in this category reaches back to strapping a camera onto anything that flew to get a "fresh shot".
Now we constantly search for new and better ways to push the limits.
Ravens is at the forefront of a sector of cinematography that is still rapidly developing. Our dedication to
special film operations allows us to focus on craft which will give you the edge in your production from start to finish.
FREEFLY ALTA X
Designed to get cinema camera packages into the air, the Freefly Alta X is the king of the roost. With a top speed of 60 mph, 10 min flight time, and camera configurable on both top and bottom, this bird is on the cutting edge of aerial cinema technology. Requires a Pilot, Cam Op, and Spotter.
Check out the more specific payload specs below:
| Platform | Weight | REM Payload (55 lb Limit) | EXT Payload (63 lb) |
|---|---|---|---|
| ALTA X W/ BATTERIES | 38.39 lbs | 16.61 lbs | 24.61 lbs |
| MOVI PRO GIMBAL | 5.84 lbs | 10.77 lbs | 18.77 lbs |
| RONIN 2 GIMBAL | 11.00 lbs | 5.61 lbs | 13.61 lbs |
| CAMERA | Weight | REM Payload (w/ MOVI PRO) | EXT Payload (w/ MOVI PRO) |
|---|---|---|---|
| ARRI MINI LF | 5.70 lbs | 5.07 lbs | 13.07 lbs |
| RED HELIUM 8K | 7.50 lbs | 3.27 lbs | 11.27 lbs |
| PHANTOM VEO 4K | 5.50 lbs | 5.27 lbs | 13.27 lbs |
| SONY VENICE | 8.60 lbs | 2.17 lbs | 10.17 lbs |
| LENSES | Weight | REM Payload (w/ ARRI MINI LF) | EXT Payload (w/ ARRI MINI LF) |
|---|---|---|---|
| COOKE S4 PRIMES | 3.30 - 10.60 lbs | 1.77 to -5.53 lbs | 9.77 to 3.53 lbs |
| ZEISS MASTER PRIMES | 4.80 - 9.00 lbs | 0.27 to -3.93 lbs | 8.27 to 5.93 lbs |
| KOWA ANAMORPHICS | 3.31 - 4.00 lbs | 1.76 to 1.07 lbs | 9.76 to 9.07 lbs |
| HAWK V-LITE VINTAGE ANAMORPHICS | 4.20 - 6.60 lbs | 0.87 to -1.53 lbs | 8.87 to 7.53 lbs |
| PANAVISION PRIMO PRIMES | 3.30 - 6.70 lbs | 1.77 to -1.63 lbs | 9.77 to 7.63 lbs |
| ARRI SIGNATURE PRIMES | 4.00 - 9.48 lbs | 1.07 to -4.41 lbs | 9.07 to 4.41 lbs |
REM PAYLOAD: The remaining available payload for additional equipment (lenses, media, FIZ’s, etc) within FAA guidelines.
EXT PAYLOAD: The remaining available payload for additional equipment (lenses, media, FIZ’s, etc) based on platform capability during Summer days in the SLC valley (90 F | 5000 ft elevation).

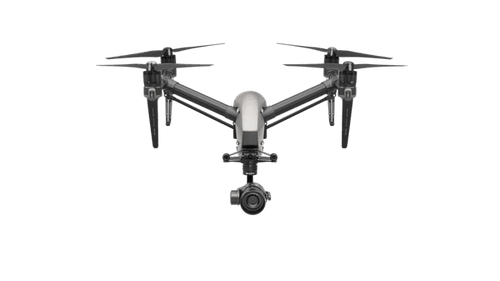

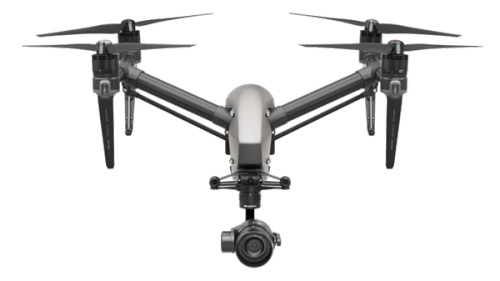

DJI INSPIRE 2 WITH X7 CAMERA SYSTEM
A great option when you don’t have a full camera system to fly, but need quality footage. This bird has a top speed of 58 mph and a flight endurance of 18 min. What you may lose in camera format you gain with a lighter, more maneuverable platform. Requires a Pilot, Cam Op, and Spotter.

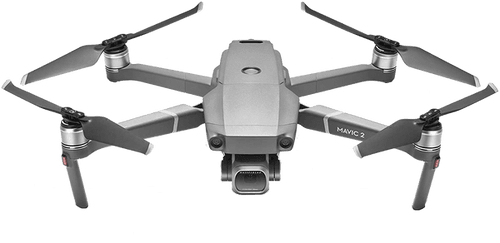

DJI MAVIC 2 PRO
Quiet and low profile, this drone is the most portable. When flight time and range are essential, this system has you covered. Top speed: 45 mph. Flight endurance: 30 min. Requires a Pilot.

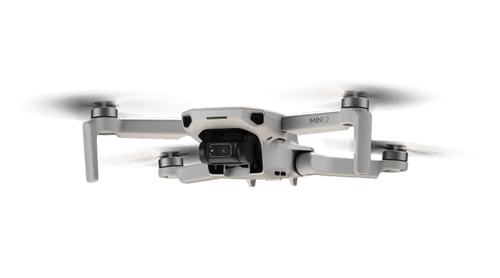

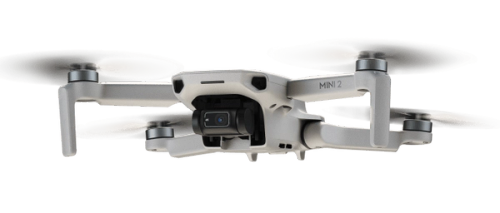

DJI Mini 2
At a weight of 249g, this drone remains outside of FAA regulations. Quiet and low profile, this drone is perfect for clandestine operations anywhere in the world. Top speed: 45 mph. Flight endurance: 30 min. Requires a Pilot.

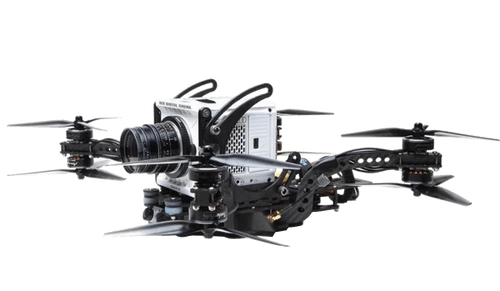

CINEMA FPV WITH RED KOMODO
This movement-focused platform unlocks all 6 dimensions of freedom. Fully acrobatic from rolls, dives, loops, and flips as well as boasting a top speed of 100 mph, this system truly makes the sky the limit. Flight endurance: 5 min. Requires a Pilot, Cam Op, and Spotter.

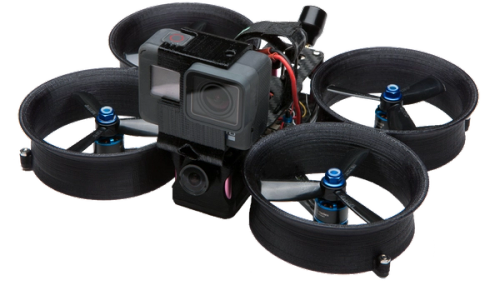

Cinewhoop FPV
This drone was made for flying safely indoors with it's blades housed in protective rings. It retains the maneuverability of other FPV platforms while being more low key and stealthy. Don't discount it for it's size; it gets mighty shots. Flight Endurance: 5 min. Requires a Pilot.

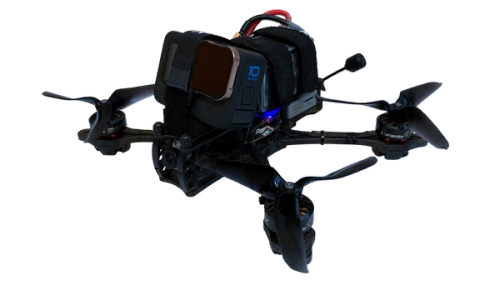

RACING FPV
This platform is the king when it comes to speed and maneuverability. With top speeds of over 100 mph and full axial freedom, this is the trick shot drone. Flight Endurance: 5 min. Requires a Pilot.

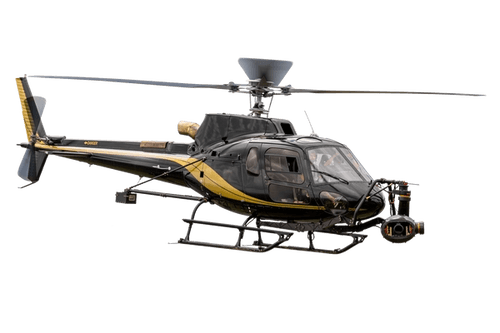

FULL SIZE AERIALS // HELICOPTER
The original aerial platform, nothing beats the Heli for speed or cinematic smoothness. We work with a few partners to get the Helicopter and camera gimbal your project requires. Custom quote. Requires a Pilot, Gimbal Operator, and Cam Op.
